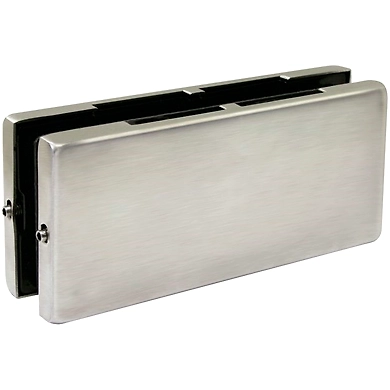

P070 - Over panel Glass Door Connector with stop inserts

BrandYALE

• Product is not available

• Price upon request
• Quantity

  -

  +

  Send Enquiry

• Over panel connector with stop inserts.

  Models
  P070SSS
  P070PSS
  P070NA

  Door Specifications
  - Maximum Door Weight 80kg
  - Maximum Door Width 1100mm

  Recommended Torque for Fixing Screws
  M6 - 10 Nm
  M6 - 15 Nm (with 5mm hex drive)
  M8 - 20 Nm

  Available Finishes
  Satin Stainless Steel - SSS
  Polished Stainless Steel - PSS
  Natural Aluminium - NA

  Minimum Order Quantity1
