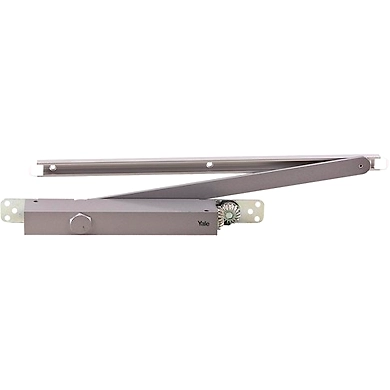

YIC5324FT-Slim

BrandYALE

• Product is not available

• Price upon request
• Quantity

  -

  +

  Send Enquiry
• Features

  • Power Adjustable EN2~EN4
  • A built-in pressure relief valve protects the closer against abuse usage.
  • Stable hydraulic fluid - low sensitivity to temperature change
  • Using needle bearings to reach optima performance and efficiency
  • None of components in a concealed door closer is visible when thedoor is closed
  • Totally reversible without adjustment
  • Non-Handed Installation
  • Minium door thickness 40 mm



  Specifications

  • Closing Force: EN 2-4
  • Max door size: 1100mm, 80kg
  • Closing Speed Angle: 120° ~ 10°
  • Latching Speed Angle: 10° ~ 0°
  • Max. Angle of Opening : 120°

  Minimum Order Quantity1
